Data displayReact Native

Funnel chart

Compares ordered nonnegative conversion stages with exact measurements.

Public APILumenFunnelChartReact Native

Native example

Use Funnel chart

Preserve input order and use aligned cohorts. Applications own conversion percentages and aggregation.

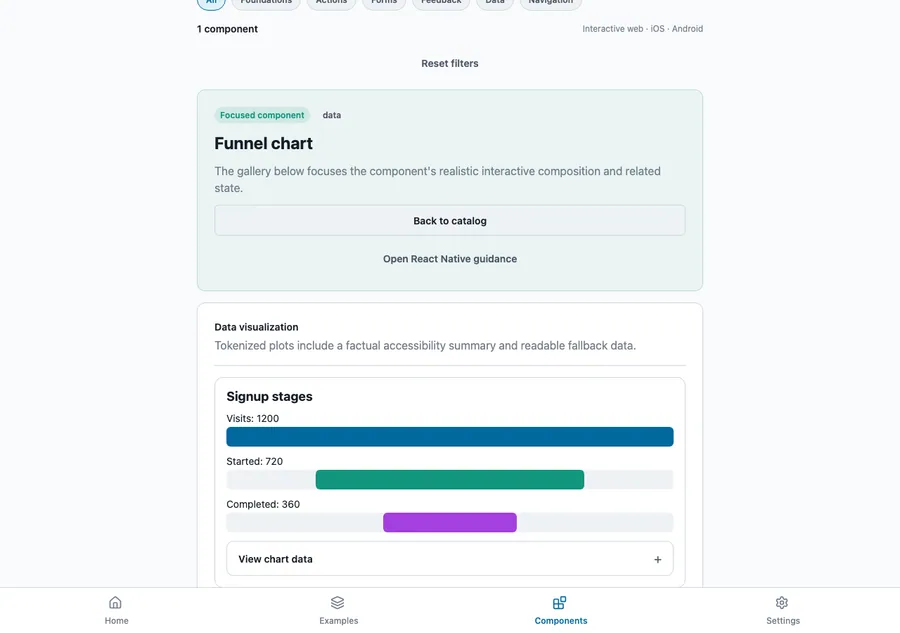

View captured React Native example

<LumenFunnelChart label="Activation funnel" data={[{ id: "visits", label: "Visits", value: 4800 }]} />

Reference

The primary shared and platform-specific options exposed by LumenFunnelChart.

API	Values or type	Default	Description
data	LumenFunnelDatum[]	Required	Unique nonempty IDs, labels, nullable nonnegative finite values, and optional tone.
labels	Localized chart labels	English	Formats exact values and empty/invalid/missing states.
showData	Boolean	true	Provides the visible expandable exact values.

Native behavior

Preserve input order and use aligned cohorts. Applications own conversion percentages and aggregation.

Visible values and an expandable data list distinguish missing stages from zero.

Shared component
